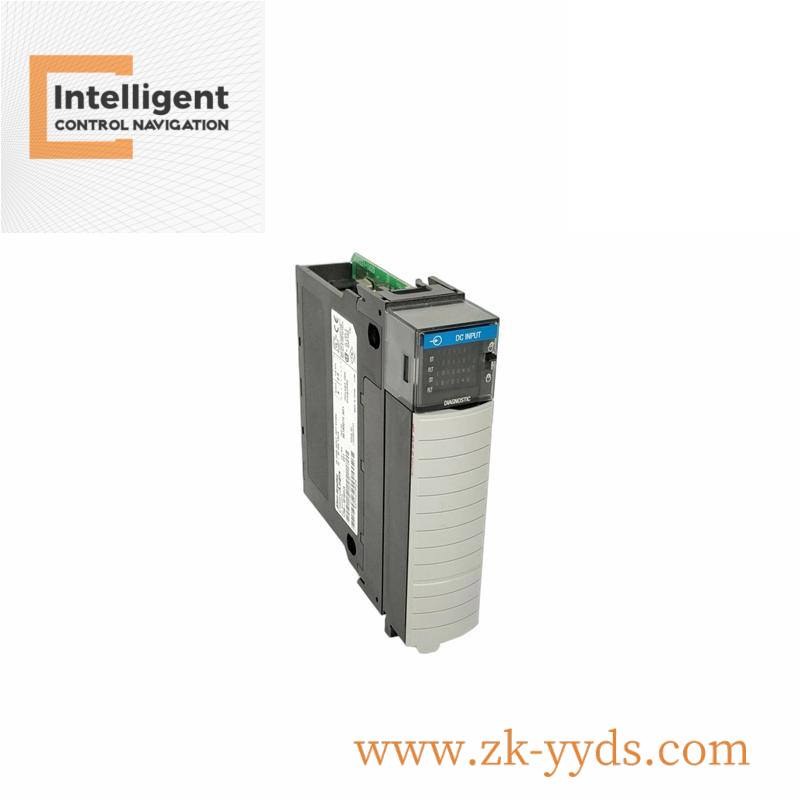

AB 1756-IB16D Digital Input Module for Allen-Bradley PLC Systems
The AB 1756-IB16D Digital Input Module is designed for industrial automation applications, providing reliable digital input functionality for various control systems. This module is ideal for monitoring and controlling discrete signals in manufacturing environments.
Manufacturer:Allen-Bradley
Model:1756-IB16D
Type:Digital Input Module
Number of Inputs:16
Input Voltage Range:10-30 VDC
Isolation:Individual Input Isolation
Operating Voltage Range:10-30 VDC
Maximum Operating Current:10 milliamperes at 30 VDC
Communication Interface:Not specified in provided documents, typical for ControlLogix systems.
The AB 1756-IB16D Digital Input Module is an essential component for any Allen-Bradley PLC system. Designed for robust performance, this module can handle up to 16 digital inputs, making it ideal for various industrial applications where accurate data acquisition is crucial. With its wide operating voltage range of 20.4…26.4V DC, it ensures stable operation under varying conditions. The module supports a maximum current per point of 0.5 A at 60 °C (140 °F) and 1.0 A at 30 °C (86 °F), ensuring reliable signal handling. It draws a maximum bus current of 200 mA, making it energy-efficient without compromising performance. Easy to install and maintain, the AB 1756-IB16D can be mounted either on a DIN rail or directly on a panel, providing flexibility in installation. Its compact design and robust construction make it a perfect fit for demanding industrial environments, where reliability and efficiency are paramount.
