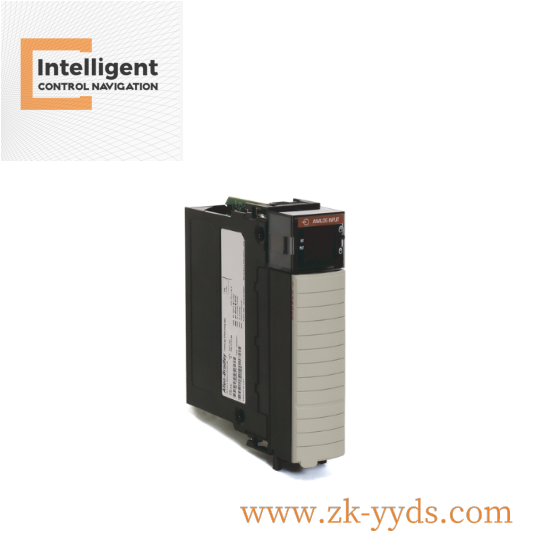

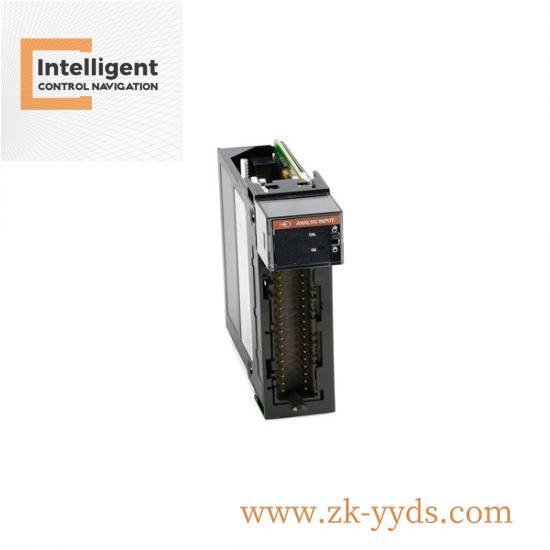

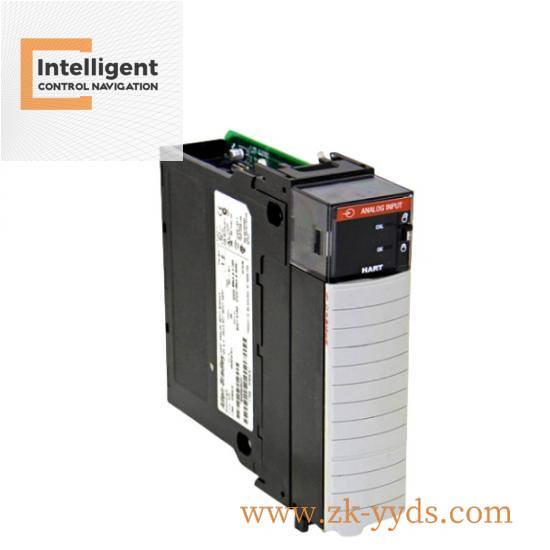

AB 1756-IF8 Analog Input Module, ControlLogix Series

AB 1756-IF8 Analog Input Module, ControlLogix Series

    The A-B 1756-IF8 is an advanced analog input module designed for industrial automation systems. It offers precise data acquisition from various sensors and transmitters, making it ideal for applications in manufacturing, energy management, and process control.

Manufacturer:Allen-Bradley

Model Number:1756-IF8H

Module Type:ControlLogix Analog Differential Input Module

Number of Points:8

Interface:36-Pin

Input Range:Differential Voltage or Current

Data Formats:Choice of three data formats

Module Filter:Yes

Real Time Sampling:Supported

Under Range Detection:Supported

Over Range Detection:Supported

Process Alarms:Supported

Rate Alarm:Supported

Wire-Off Detection:Supported

HART Communication:Compatible

    This Allen-Bradley 1756-IF8 ControlLogix Analog Input Module offers up to eight differential inputs for precise measurement of voltage and current signals.

     It supports various data formats to meet different application needs.

     The built-in filter ensures clean signal processing, while the real-time sampling feature allows for immediate response to changes.

     With comprehensive detection capabilities, including under range, over range, and wire-off detection, this module enhances system reliability.

     Furthermore, it provides process alarms and rate alarms to alert operators of critical conditions, ensuring timely intervention.

     Designed for integration into ControlLogix systems, this module facilitates seamless communication and control in industrial settings.
