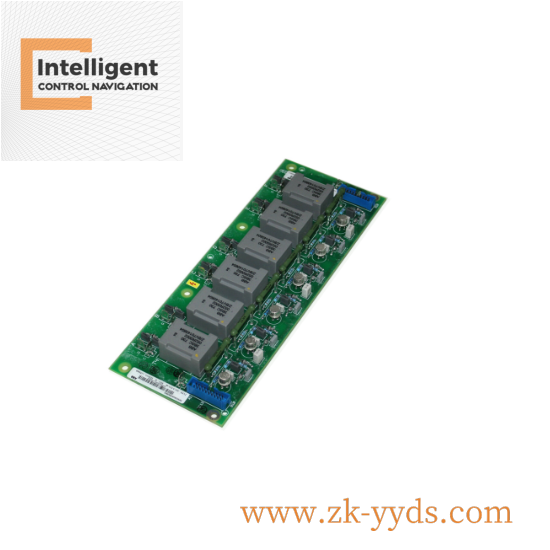

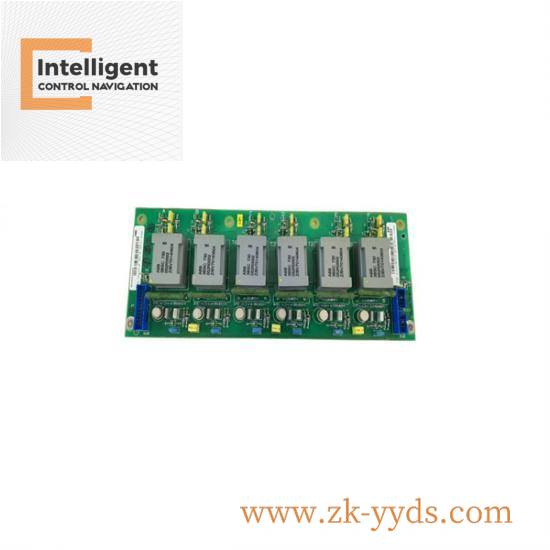

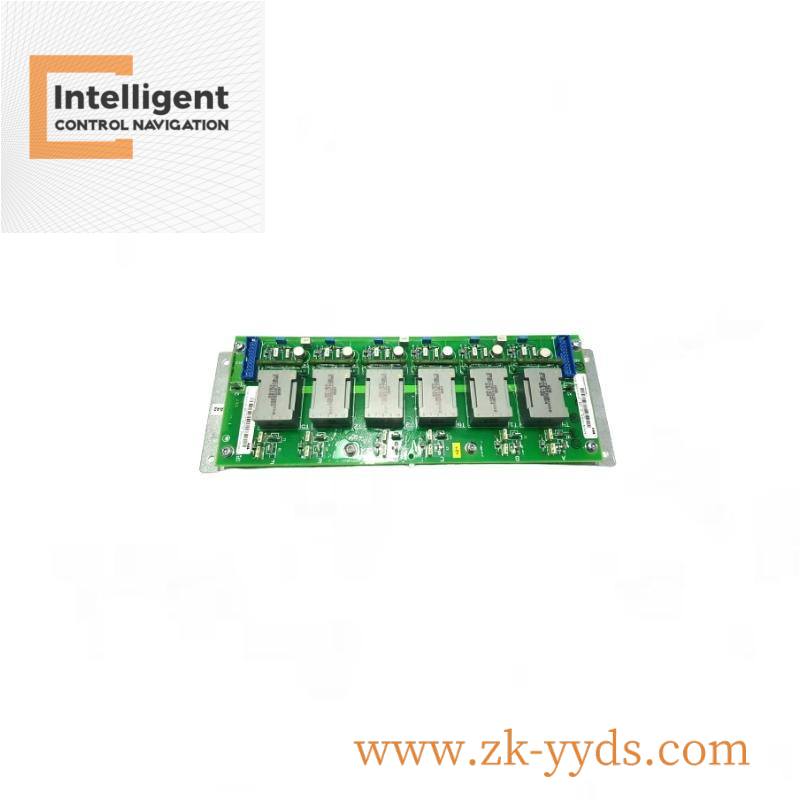

ABB 3ADT220090R0043 Pulse Transformer Board for Industrial Control
This pulse transformer board by ABB is designed for industrial control applications, providing reliable signal isolation and protection against voltage spikes. It ensures efficient and stable operation in demanding environments.
Manufacturer:ABB
Model Number:3ADT220090R0043
Function:Pulse Transformer Board
Application Area:Industrial Control
Input Voltage Range:Varies based on specific application needs
Frequency Range:Suitable for various industrial frequencies
Operating Temperature Range:-40°C to +85°C
Protection Rating:IP67 (dust tight and water resistant)
Certifications:CE, RoHS compliant
This pulse transformer board is meticulously engineered by ABB to deliver superior performance in harsh industrial environments. Its primary function is to amplify and isolate electrical signals, ensuring high fidelity data transfer between devices.
Key Features:
– High Efficiency: Optimized for minimal energy loss during signal transmission.
– Reliable Performance: Designed to operate under extreme conditions, ensuring consistent operation over a wide range of temperatures.
– Durable Construction: Built with copper windings and epoxy resin casing for long-lasting use.
– Enhanced Protection: Equipped with IP67 rating, it offers excellent protection against dust and water ingress.
Usage Instructions:
To install this pulse transformer board, first ensure that the system is powered off and isolated from the main power supply. Connect the input voltage according to the specifications provided in the user manual. Ensure proper grounding to prevent any potential damage due to electrical surges. For maintenance, regularly check connections and inspect for signs of wear or corrosion.
This ABB pulse transformer board is a crucial component for modern industrial control systems, offering unmatched reliability and efficiency.
