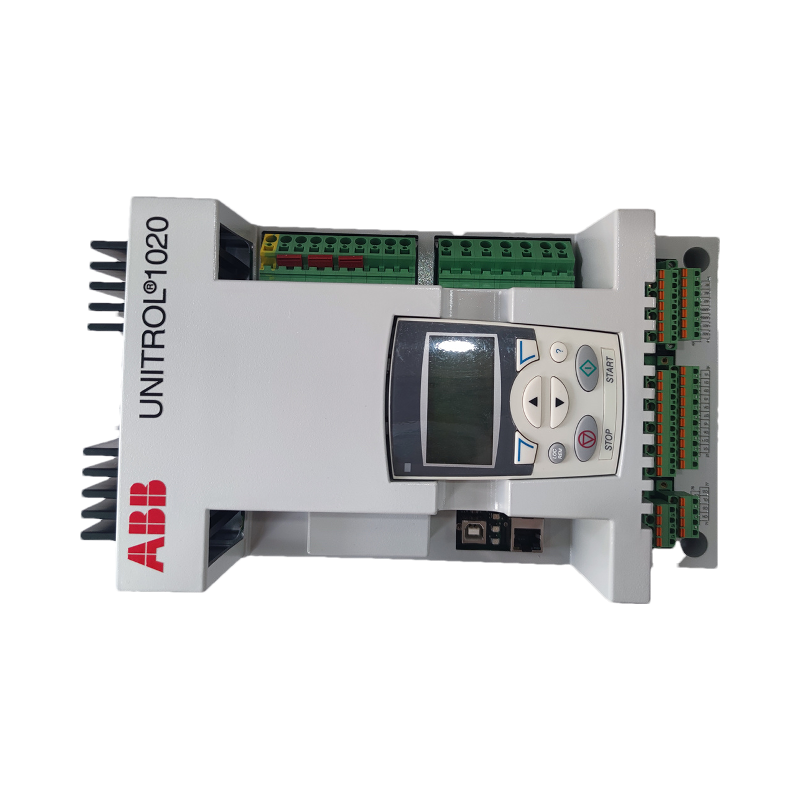

ABB 3BHE030579R0007

Function Features1

• Automatic Voltage Control: It can maintain a consistent voltage output by adjusting the excitation current supplied to the generator’s field windings, which is achieved through a built – in proportional – integral – derivative (PID) controller.
• Power Factor and Reactive Power Management: It can regulate the power factor and reactive power output of the generator, improving the overall system stability, and also uses a PID control algorithm for this function.
• Dual – channel Support: It has the function of dual – channel support, which can control two generators simultaneously.
• Load Sharing: It can ensure the balanced distribution of load among multiple generators operating in parallel.
• Rotating Diode Monitoring: It can monitor the health of the rotating diodes inside the generator.
• Automatic Synchronization: It simplifies the process of synchronizing the generator with the power grid.

Application Scenarios1

• Power Generation Field: It is mainly used for the voltage control and regulation of small and medium – sized synchronous generators, ensuring the voltage stability and load balance of the power system, and is suitable for the excitation control of generators in power plants.
• Industrial Automation: It can be used in some industrial equipment that requires stable power supply, such as motors, pumps, fans, etc., to provide stable voltage support and ensure the normal operation of equipment.

Supported Industrial Protocols5

Expandability
