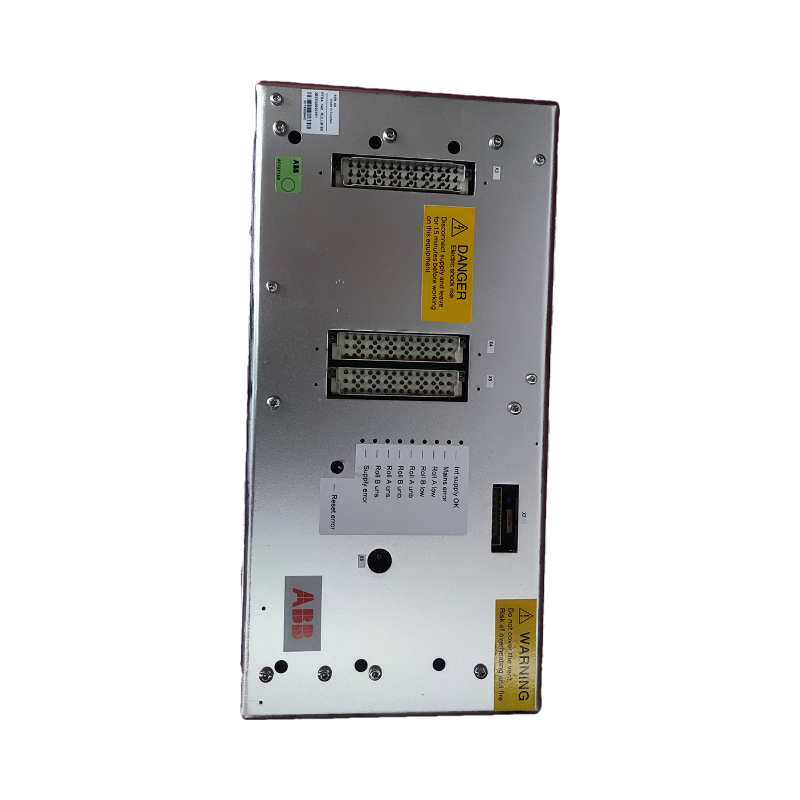

ABB PFSA140 3BSE006503R1

• Encoder Interface: It has a differential incremental encoder and digital Hall sensor signal interface, as well as a differential SSI absolute encoder signal interface.
• Pulse Input: It supports opto – isolated differential pulse + direction signal input, with a selectable input level of 5V/24V, and the pulse rate can reach 1M.
• Current Output: The continuous current is 10A, and the peak current is 30A.
• Control Mode: It supports position, speed, and torque control modes.
• Operation Mode: It can operate in single – axis or multi – axis mode (Master/Slave, up to 256 axes), and also supports stand – alone operation.
• Motion Mode: It has programmable T – type or S – type speed – position curves, electronic gear, electronic cam, PT/PVT interpolation external control, and multiple event – trigger functions.
• Protection Function: It has protection functions such as over – current, short – circuit, ground fault, over – voltage, under – voltage, I2t, control error, and over – temperature.

Functional Features

• High – precision Control: It can provide precise tension control, ensuring the stability and consistency of materials during the production process, which is suitable for industries with high – precision requirements2.
• Integrated Function: It is a full – digital servo drive with embedded motion control and PLC functions, which can meet a variety of control needs without additional complex configurations1.
• Modular Design: It supports modular design, and users can add different types of input and output modules, communication modules, etc. according to their needs to meet specific application requirements4.
• Multiple Communication Interfaces: It has a variety of communication interfaces, which is convenient for data exchange and communication with other devices and systems4.

Application Scenarios2

• Packaging Industry: It is used to control the tension of packaging materials such as paper and film, ensuring the stable supply of materials and the consistency of product packaging.
• Textile Industry: It is used to control the tension of yarns or fabrics, which is helpful to improve the production quality and efficiency of textiles.
• Cable Production: It is used to precisely control the tension in the cable production process to ensure the quality of cables.
• Metal Processing: It is used to control the tension of metal materials during processing and transportation, improving processing accuracy and efficiency.
• Plastic Products Manufacturing: It is used to control the production process of plastic films.
• Other Fields: It is also widely used in energy management, environmental monitoring systems, intelligent factories, logistics centers, food processing, pharmaceutical industry, automotive manufacturing, electronic manufacturing and other industrial fields.

Supported Industrial Protocols3

Expandability4
