ABB S-093H

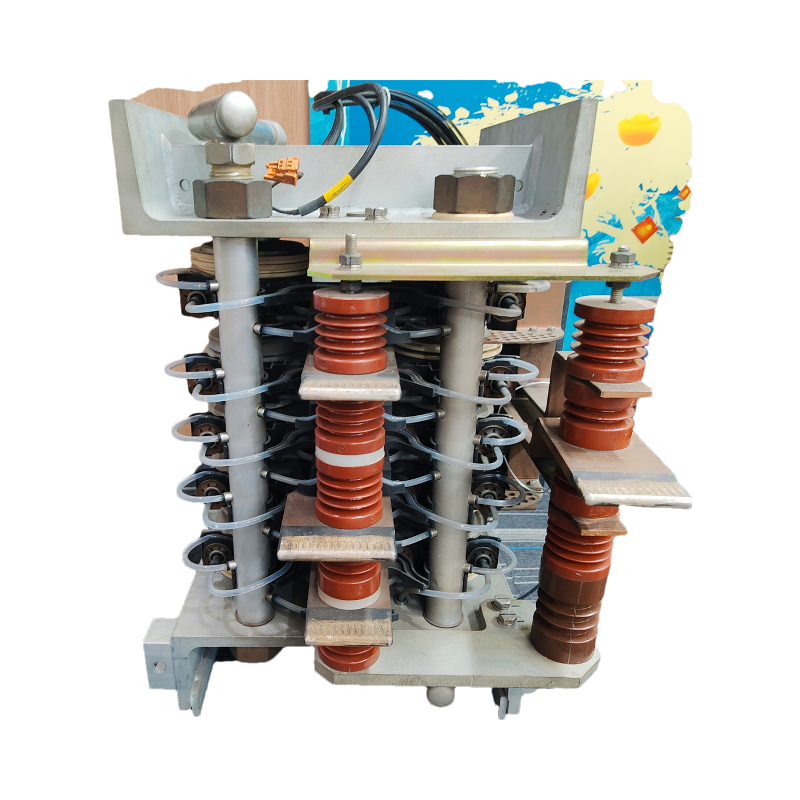

• ABB S-093H-3BHB009885R0004 Phase Module
  • Technical Specifications6: It has a rail – type, desktop or embedded structure. It is equipped with a 3 – way RS232 or 485 serial port, and the serial port rate is 300～9600bps. The communication error code is ≤10-4. The operating temperature range is – 20℃ to 70℃, the humidity is ≤95% non – condensing, and it is suitable for non – corrosive and non – explosive environments. The power supply is 10 – 30V DC, the standby power consumption is 1W, and the transmission power consumption is 2W.
  • Functional Features4: It is mainly used for phase measurement and control, which can ensure the stable operation of the power grid. It supports digital signal input and digital and analog output. It has protection functions such as over – voltage and over – current, and supports communication protocols such as Modbus and Profibus. It has the characteristics of high – precision measurement, high reliability, and flexible configuration, and has a self – diagnosis function, which is convenient for fault troubleshooting and maintenance.
  • Application Scenarios3: Widely used in power systems, industrial automation, energy transformation, mining equipment and other fields, such as phase control and measurement of high – voltage and medium – voltage systems, motor control, and excitation control of synchronous motors.
• ABB S-093H-3BHB030478R0309 Electronic Device or Circuit Module7
  • Technical Specifications: It adopts Profibus DP standard to communicate with the control system layer, and the protection level is G3 coating, which can protect all components. The net weight is 175kg. It can be installed in non – hazardous areas or directly in zone 1 or zone 2 hazardous areas.
  • Functional Features: It has power and communication redundancy functions, and can perform hot – configuration during operation. It has a hot – swap function, which allows the power supply unit to be replaced without interrupting the main voltage. It can realize excellent configuration and diagnosis through FDT/DTM, and has an automatic diagnosis function, which is convenient for maintenance.
  • Application Scenarios: It is used in communication systems for signal modulation and demodulation; in audio processing for adjusting the phase of audio signals; in power systems for power factor correction, energy metering and fault detection; in mechanical condition monitoring for measuring the key phase signals of rotating machinery to obtain the speed, steering and phase information of the machinery for fault diagnosis, vibration analysis and control.
