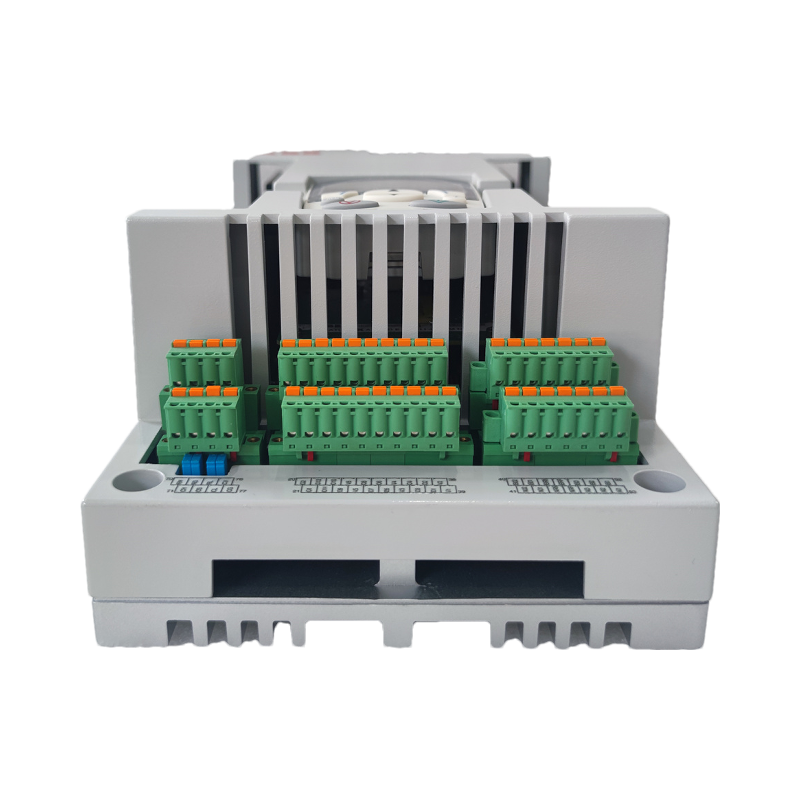

ABB UNITROL1020

Technical Specifications3

• Input Voltage: AC 110V/220V, supporting three - phase or single - phase input.
• Output Current: The maximum can reach 600A.
• Output Voltage: Adjustable, set according to application requirements.
• Working Temperature Range: - 40°C to 70°C, and the storage temperature range is - 40°C to 85°C.
• Control Mode: Speed control, torque control, PID control.

  Function Features1

  • High - performance Control: Combining advanced microprocessor technology and IGBT semiconductor devices, it can provide precise voltage control and fast response, and realize high - precision voltage control.
  • Dual - channel Support: It supports dual - channel operation, with advanced load - sharing capabilities, which can better meet the needs of parallel operation of multiple units.
  • Automatic Synchronization: The built - in automatic synchronization function simplifies the operation process and improves the speed and accuracy of system response, which is convenient for the connection and operation of the generator in the power grid.
  • Data Recording: It provides data and event recording functions, which is convenient for users to trace and analyze the system operation status, helping to troubleshoot and optimize the system.
  • Multiple Protections: It has safety protection functions such as overload protection, short - circuit protection and over - temperature protection, as well as over - voltage, under - voltage and over - current protection, which can effectively protect the generator and related equipment.
  • Compact Design: With a compact structure, it can work stably in harsh environment conditions, and is fully in line with DNV and UL standards.

  Application Scenarios3

  • Power Plants: It is used to regulate the output voltage of synchronous generators, ensure the stable operation of the power grid, and is applicable to the excitation control of generators in power plants.
  • Industrial Automation: It is used for the power supply and control of industrial equipment, such as conveyor belts, pumps, fans, etc., and can also be used for production line control, process monitoring and data collection in the manufacturing industry.
  • Marine Power Systems: It is used for the voltage regulation of marine generator sets to ensure the stable power supply of ships.
  • Renewable Energy Installations: Such as wind or hydropower plants, it is used to stabilize power output and maintain voltage levels.
  • Data Centers: It ensures the stability of the power system in data centers, providing a reliable power guarantee for the normal operation of equipment.

  Supported Industrial Protocols1

  It supports a variety of industrial protocols, including Modbus, DNP3, IEC60870 - 101/104, and also has communication interfaces such as Ethernet and USB, which is convenient for communication and data exchange with other devices or systems.

  Expandability

  Although there is no direct public information specifically describing its expandability, as a product in the UNITROL1000 series, it has certain compatibility and flexibility2. Its support for a variety of communication protocols can facilitate integration with other automation and electrical systems, rotating machine control, and instrumentation, and can be connected to other control devices or monitoring systems, which has a certain expandability in system integration2. At the same time, the dual - channel design and the ability to support load sharing also provide a certain foundation for the expansion of the system, allowing it to be better integrated into larger - scale power systems or industrial control systems.
