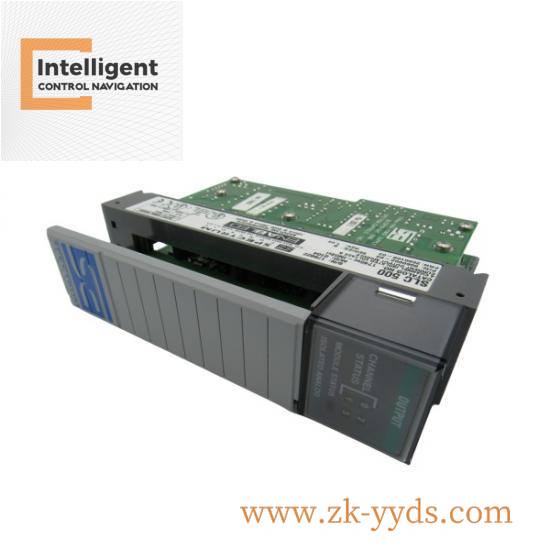

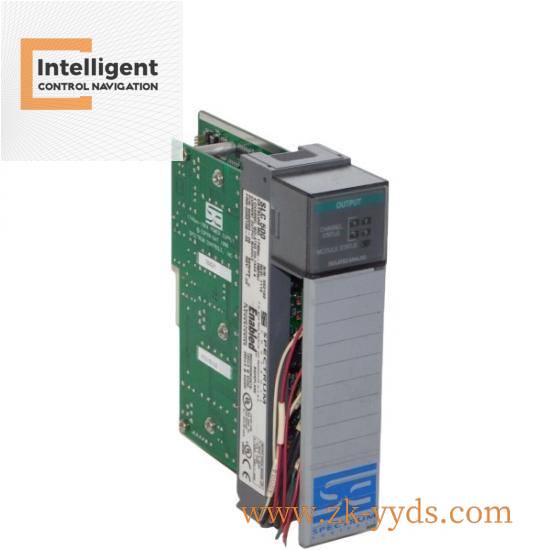

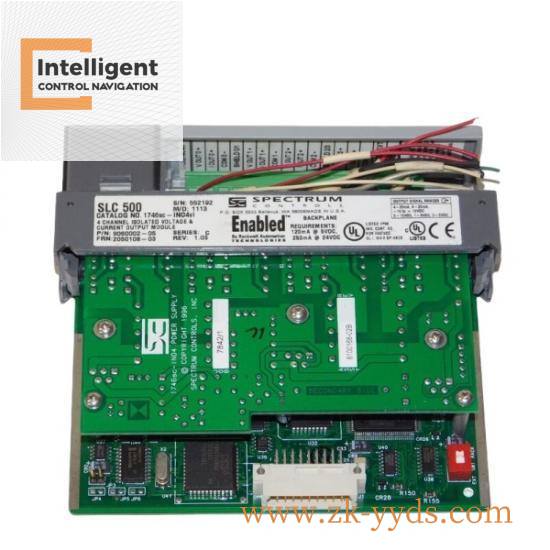

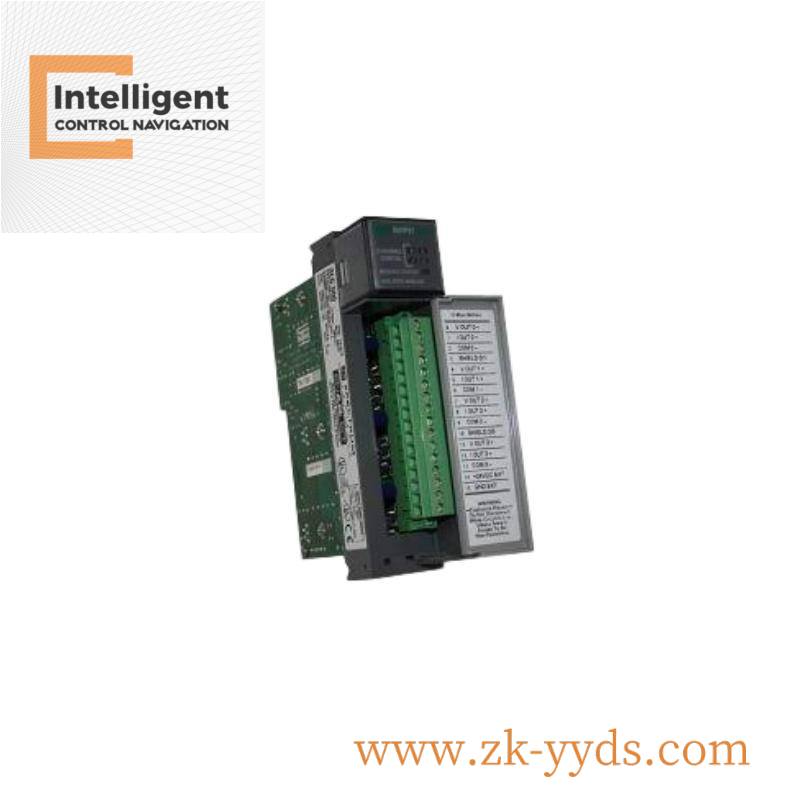

Allen Bradley 1746SC-INO4VIVolt Output SLC 500 Module

Allen Bradley 1746SC-INO4VIVolt Output SLC 500 Module

    The Allen Bradley 1746SC-INO4VIVolt Output SLC 500 Module is an advanced analog combination module designed for high-resolution industrial control systems. It integrates both input and output functionalities within a single compact unit, offering superior performance and reliability for various automation applications.

Model Type:SLC500

Model Number:1746-SC-INO4VI

Manufacturer:Allen Bradley

Module Type:Analog Output Module

Number of Channels:4 (Output)

Output Range:-10 To 10 V – 1 LSB

Full Scale:10 VDC

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Backplane Current Draw:At 5 V: 35 MA, At 24 V: 85 MA

Isolation:Backplane: 500 VDC, Enclosure: Open Type

    The Allen Bradley 1746SC-INO4VIVolt Output SLC 500 Module stands out due to its high-resolution analog input and output capabilities, providing precise voltage and current monitoring and control.

     This module is designed to integrate seamlessly into existing Allen Bradley SLC 500 systems, enhancing overall system performance.

     With a common mode voltage range from -20 to 20 volts, it offers robust performance under varying conditions.

     Its absolute input voltage and current ratings ensure reliability even when subjected to extreme conditions.

     The module’s backplane current draw is optimized for efficient operation, minimizing energy consumption without compromising on performance.
