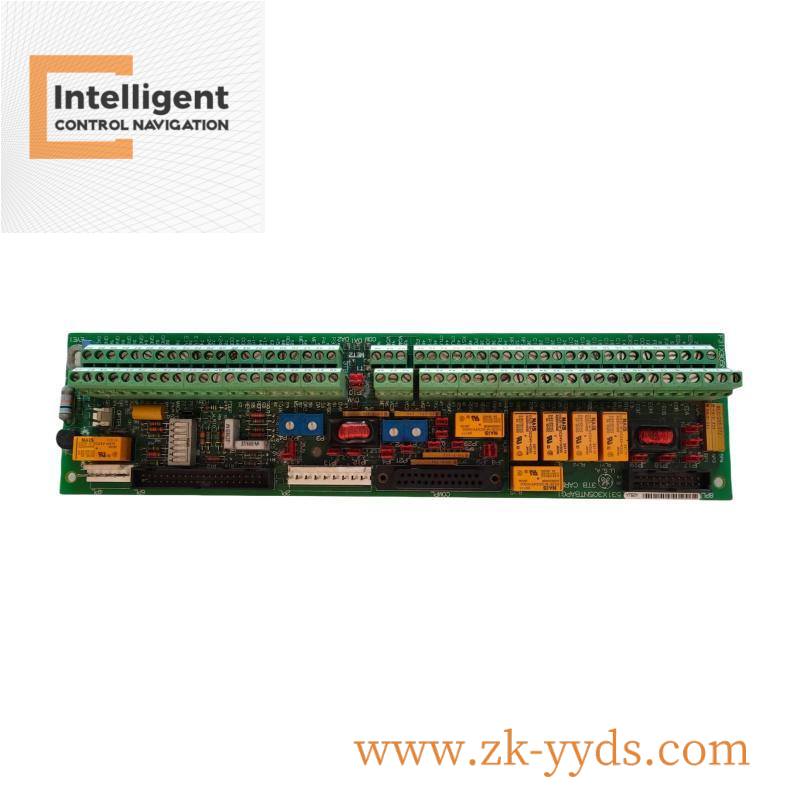

GE 531X305NTBAPG1 Numerical Operation, Data Comparison, Base Conversion Module
The GE 531X305NTBAPG1 is a high-performance NTB/3TB terminal board designed by General Electric for use in industrial control systems. It offers a versatile interface for digital control inputs, relay outputs, low-level analog I/O, and more.
Manufacturer:General Electric
Model:531X305NTBAPG1
Type:Digital Computing Module
Compatibility:For use in GE Drive or Exciter Cabinets
Input Voltage Range:2 to 240 V
Output Voltage:Regulated and Unregulated Power Outputs
Signal Levels:Differential A Quad B Encoder Interface (Optically Isolated)
Analog I/O:Low-Level Analog Inputs and Outputs
Serial Interfaces:RS-232C and RS-422 Serial Interfaces Supported
Weight:0.3 kg
Certifications:CE, RoHS Compliant
The GE 531X305NTBAPG1 terminal board is meticulously engineered for integration into industrial control systems, ensuring reliable performance and seamless connectivity.
Designed as an integral component of GE’s drive or exciter cabinets, this board offers a comprehensive range of interface capabilities.
Its passive-interface circuitry facilitates easy connections for external signal-level inputs and outputs, enhancing system functionality.
The board supports multiple types of interfaces including digital control inputs, relay outputs, and low-level analog I/O, which are crucial for advanced control applications.
Furthermore, it includes optical isolation for differential A quad B encoder interfaces, providing robust data transmission and interference protection.
Additionally, the board supplies both regulated and unregulated power sources, making it versatile for a wide range of applications.
