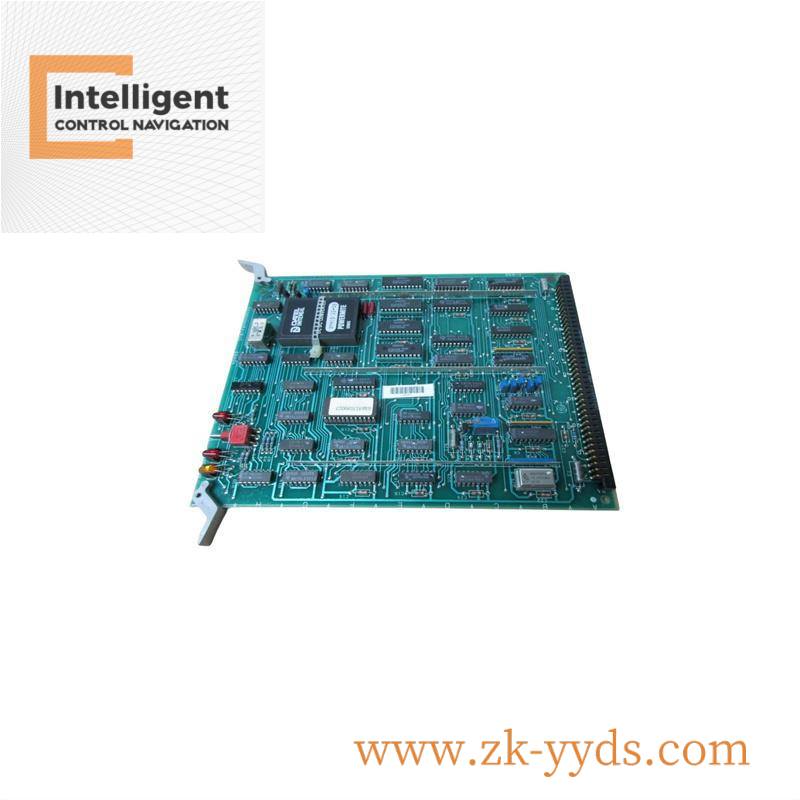

    The General Electric DS3800HPIB is a high-performance Panel Interface Board designed for GE’s Mark IV turbine control systems. This board facilitates seamless communication between various system components, ensuring optimal performance and reliability in industrial environments.

Model Number:DS3800HPIB

Manufacturer:General Electric

Module Type:Phase Module Top Bridge

Compatibility:Designed for GE Speedtronic Mark IV turbine control systems

Diodes:Approximately fifty small sky blue diodes and six silver diodes

Connection Terminals:Eight connection terminals of varying sizes

EPROM & EEPROMS:Around forty-five EPROM and EEPROMs for storing programming data

LEDs:Over thirty-five red LEDs on the face of the board

Switch:Small toggle switch included

Mounting Points:Twelve mounting points for secure installation

Certifications:CE, RoHS compliant

    The General Electric DS3800HPIB Panel Interface Board is an essential component for integrating your Mark IV turbine control system with peripheral devices.

     Designed for reliability and efficiency, this board features over thirty-five red LEDs for real-time status monitoring and twelve screw mounts to ensure secure installation.

     With nine separate connection points compatible with female harnesses, the DS3800HPIB offers versatile connectivity options.

     Crafted with high-quality materials, this board guarantees long-lasting performance and robust functionality.

     Upgrade your control system with the DS3800HPIB for unparalleled precision and reliability in your operations.
