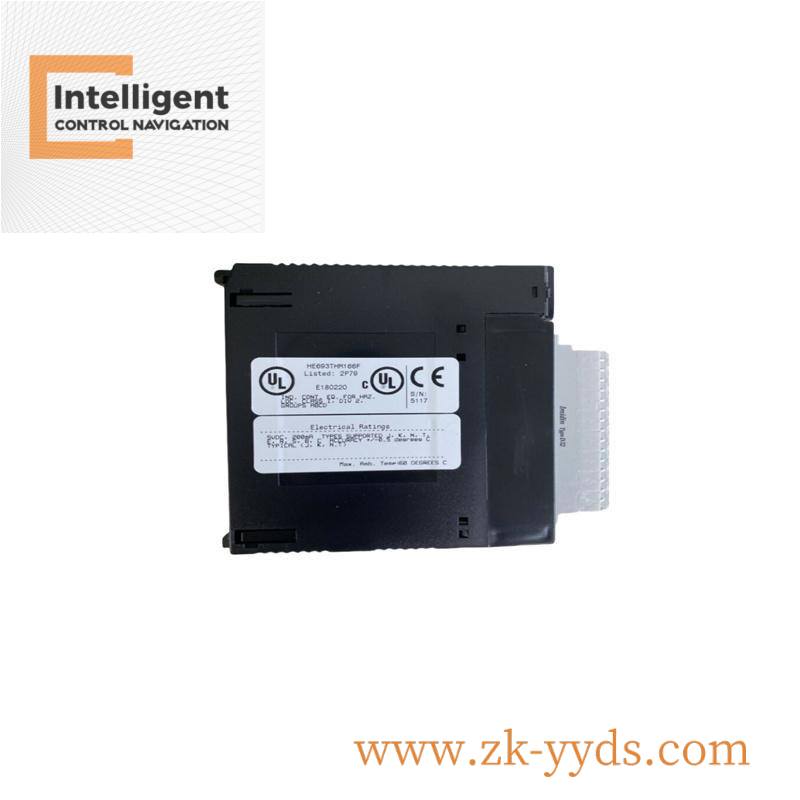

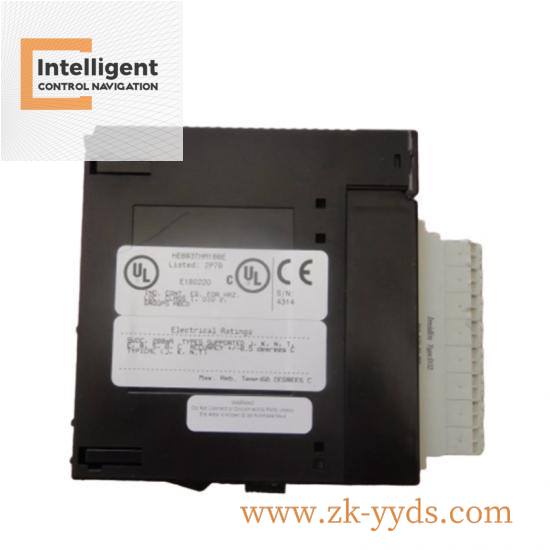

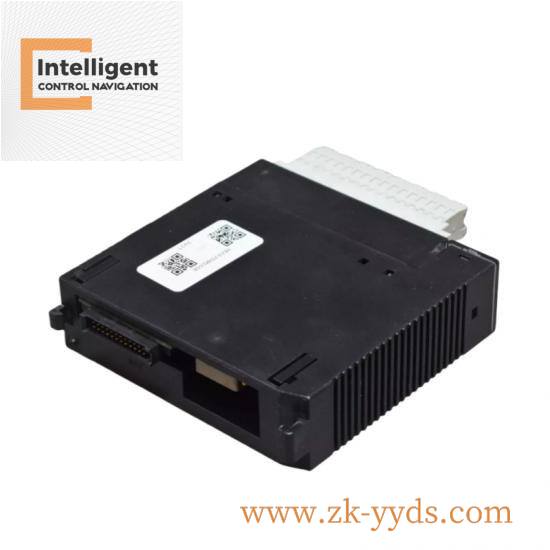

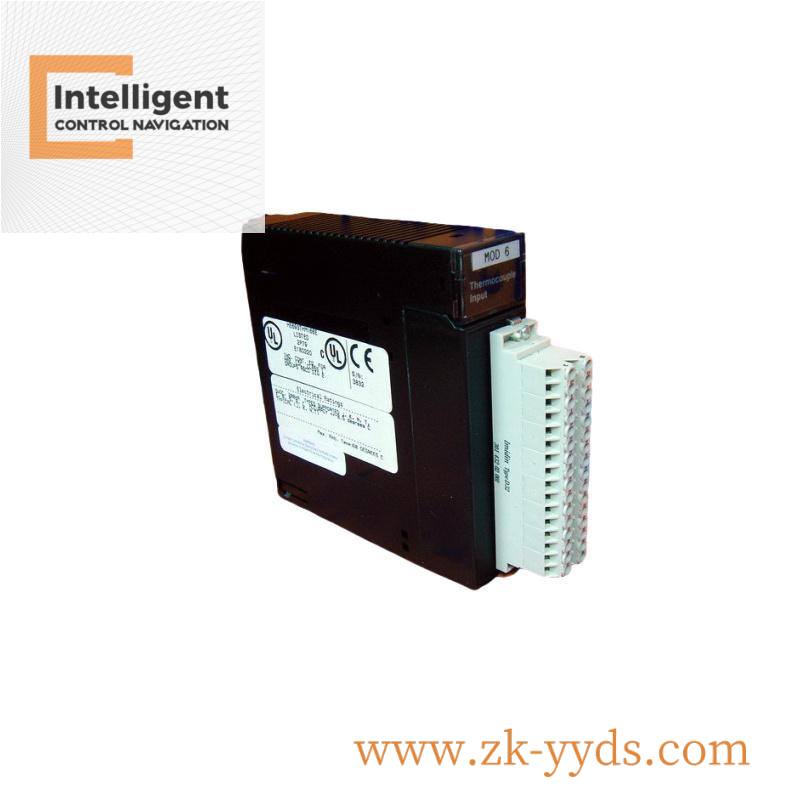

GE Fanuc HE693THM166 Thermocouple Analog Input Module
The GE Fanuc HE693THM166 is an advanced thermocouple analog input module designed for industrial control systems. It offers reliable data acquisition for temperature monitoring and control applications in various industries.
Brand:GE Fanuc
Model:HE693THM166
Module Type:Thermocouple Analog Input Module
Channels:16
Isolation Voltage:± 250 VAC between channels
Filter:50 Hz notch filter
Open Circuit Alarm:Yes
Resolution:0.5°C / 0.5°F
Accuracy:±0.5°C, typical (J,K,N,T)
This high-quality thermocouple analog input module from GE Fanuc offers unparalleled accuracy and reliability in industrial temperature measurement applications. Designed with 16 independent thermocouple channels, it can handle up to sixteen different temperature sensors simultaneously, making it ideal for complex industrial environments.
Each channel on the HE693THM166 module is isolated up to ± 250 VAC, ensuring excellent noise immunity and preventing electrical interference between channels. This feature is particularly beneficial in noisy industrial settings where signal integrity is crucial.
Equipped with a notch filter at 50 Hz, this module is capable of filtering out unwanted electrical noise that may interfere with precise temperature readings. The open circuit alarm ensures immediate detection if any sensor becomes disconnected, allowing for prompt corrective action.
With a resolution of 0.5°C or 0.5°F, the HE693THM166 module delivers highly accurate temperature data, with an accuracy of ±0.5°C, typical for commonly used types of thermocouples (J, K, N, T). This level of precision is critical for industries requiring tight temperature control.
The module operates efficiently with a power consumption of 80 mA at 5 VDC and 60 mA at 24 VDC (Relay), ensuring low energy usage while maintaining robust performance. Its compact design facilitates easy installation in a variety of control panels and machinery setups.
