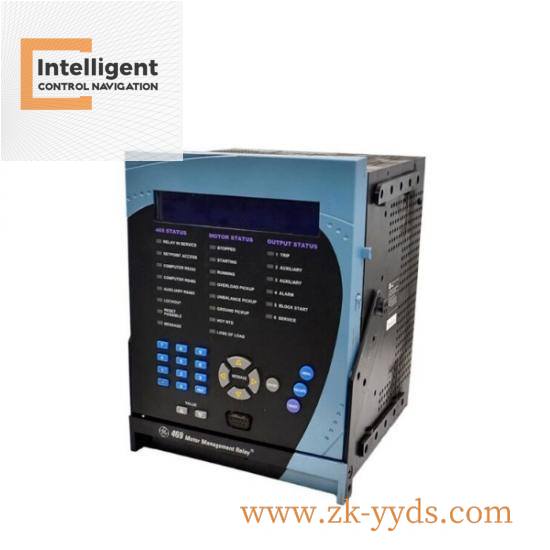

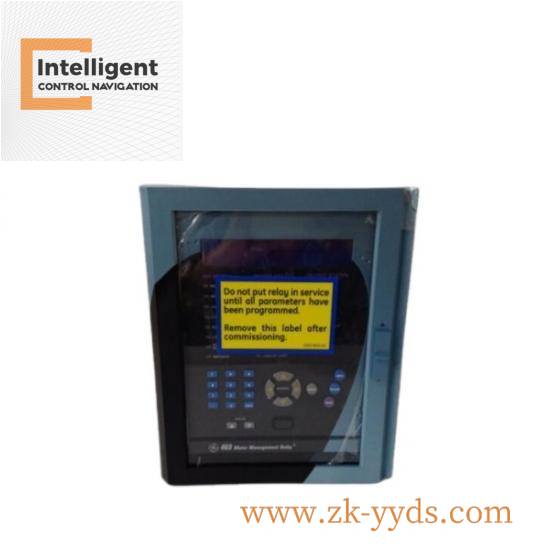

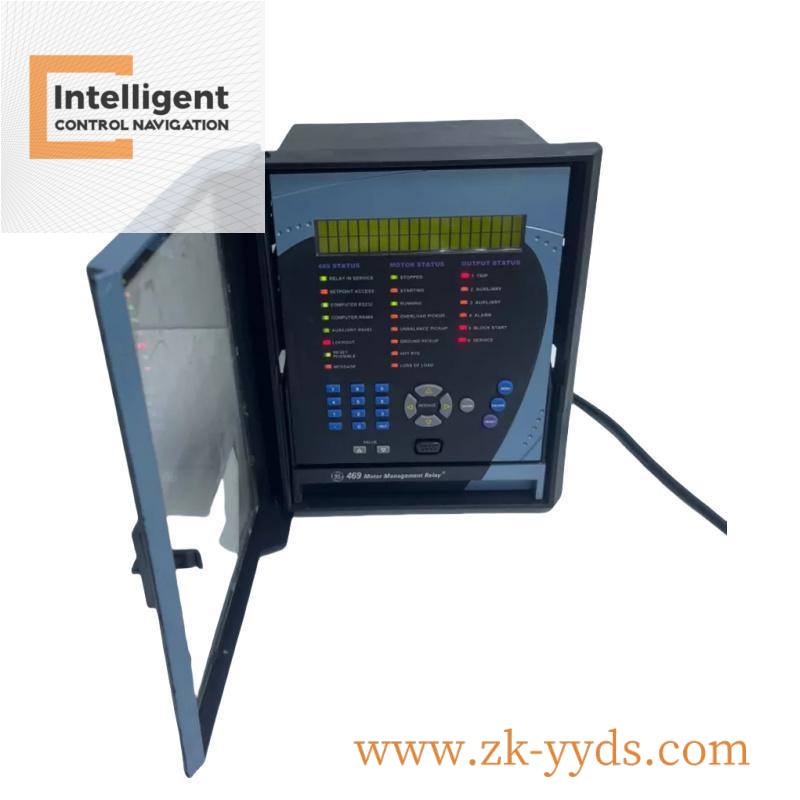

GE SR469-P5-HI-A20 High Voltage Plant Working & Standby Branch
The GE SR469-P5-HI-A20 is a high-performance Motor Management Relay designed for industrial applications. It integrates advanced RTD inputs, robust motor protection, and reliable remote terminal unit (RTU) functions to ensure efficient motor management.
Product Model:469-P5-HI-A20
Voltage Range:90-300 VDC / 70-265 VAC
Frequency Range:48-62 Hz
Phase Current Inputs:5A phase CT secondaries
Analog Outputs:4 x 4 to 20 mA
RTD Inputs:Multiple RTDs for temperature measurement (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)
Software:EnerVista 469 Setup
Environmental Protection:Conformal Coating
Enclosure Rating:20-X
Delivery Time:4-5 weeks
The GE SR469-P5-HI-A20 is a versatile motor management solution tailored for industrial environments requiring precise motor control and protection. This model boasts multiple RTD inputs capable of determining actual temperature and hottest points for motor systems, enhancing thermal monitoring. With an array of four analog outputs ranging from 4 to 20 mA, it provides accurate measurements essential for real-time operational insights. The inclusion of Ethernet (10Base-T) capability ensures seamless integration into existing network infrastructures.
Designed with durability in mind, this unit features a flame, corrosion, and dust retardant enclosure, ensuring longevity even under harsh conditions. Its compact size of 12″ x 11″ x 10″ makes it ideal for installations where space is limited. Weighing less than 15 lbs before packaging, it is easy to transport and install.
With a wide range of operating voltages, from 90-300VDC and 70-265VAC, the GE SR469-P5-HI-A20 caters to diverse industrial power requirements. Its overvoltage category II rating and insulation voltage of 300 V provide additional safety measures for connected equipment.
Enhanced front panel controls and software support through EnerVista 469 Setup make setup and operation straightforward, streamlining the management of motors and systems. Whether used as a working or standby branch, the GE SR469-P5-HI-A20 offers dependable performance and management capabilities for all your industrial needs.
