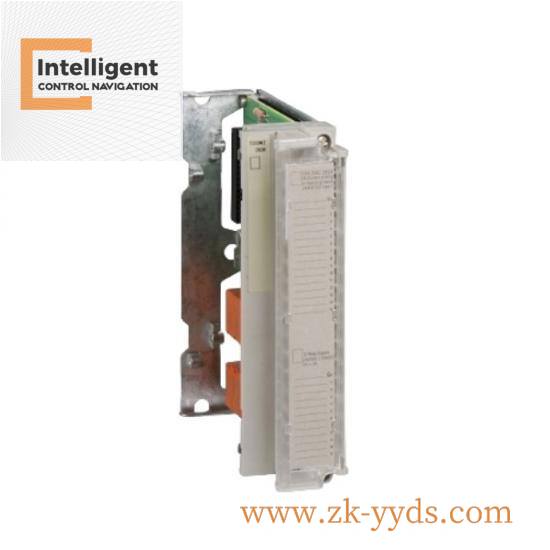

Schneider TSXDMZ28DT Input Module – High Performance DC Discrete Input/Output Module for Automation Control Systems
This Schneider TSXDMZ28DT Input Module is an essential component for extending the input capabilities of Modicon TSX Micro automation systems. It provides 16 channels of discrete solid-state DC inputs and 12 screw-terminal block outputs, making it ideal for industrial control applications.
Extended Product Type:Module
Product ID:TSXDMZ28DT
Type Designation:Discrete Input Module
Discrete Input Number:16
Connector Type:HE-10
Discrete Input Voltage:24 V DC positive
Discrete Input Current:7 mA per channel
Discrete Output Number:12
Output Type:Screw Terminal Block
Discrete Output Voltage:24 V DC
Discrete Output Current:0.5 mA
Current Consumption:132 mA
Power Dissipation:3.5 W per module, 0.15 W per channel, 5 W input
Weight:.94 lb (0.425 kg)
This Schneider TSXDMZ28DT Discrete Input Module is a high-performance solution for any industrial automation setup. Designed with the Modicon TSX Micro platform in mind, it features 16 channels of solid-state DC inputs and 12 channels of solid-state outputs. The module operates on a 24V DC supply, providing a robust and reliable interface between the physical world and your automation system. Each input channel is capable of handling up to 7 mA, while each output channel can handle up to 0.5 mA. This module is built to last, with a power dissipation of just 3.5 W per module and 0.15 W per channel, ensuring minimal heat generation and extended operational life. Its compact size and screw terminal connections make installation quick and easy, reducing downtime and increasing efficiency. With a total weight of only 0.425 kg, this module is lightweight and can easily fit into any existing setup.
