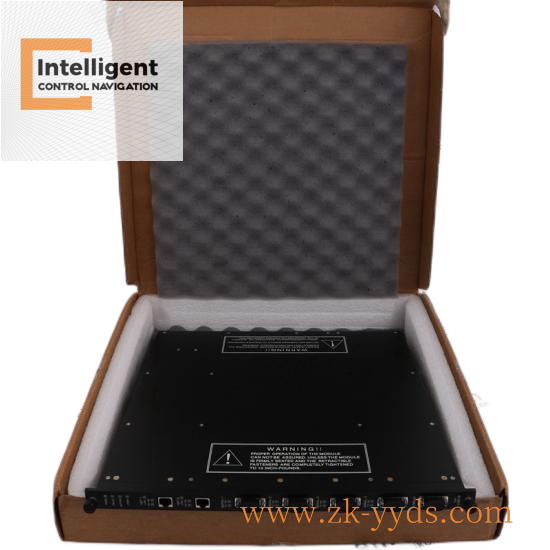

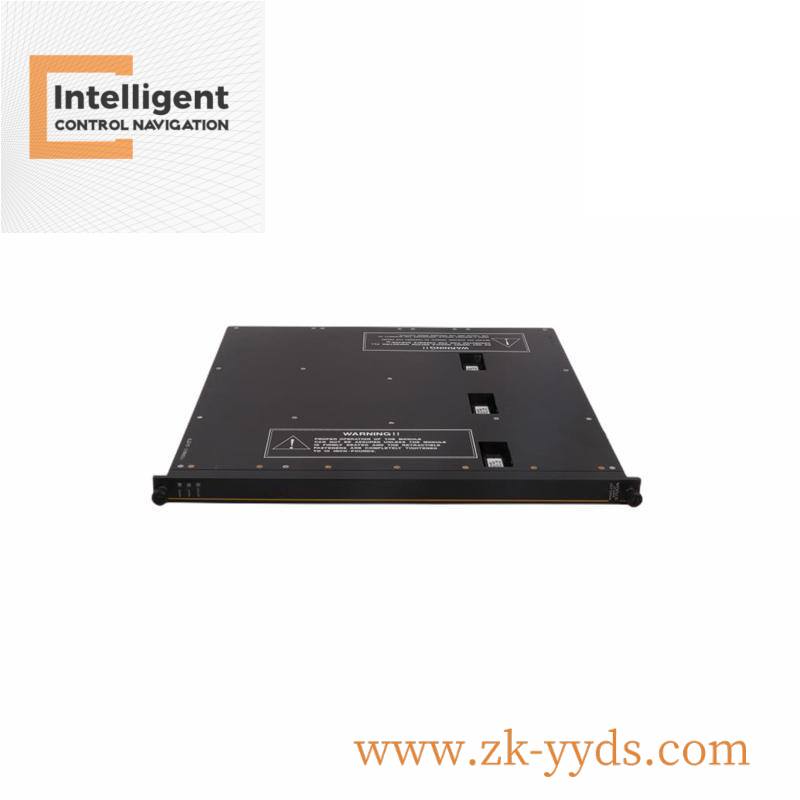

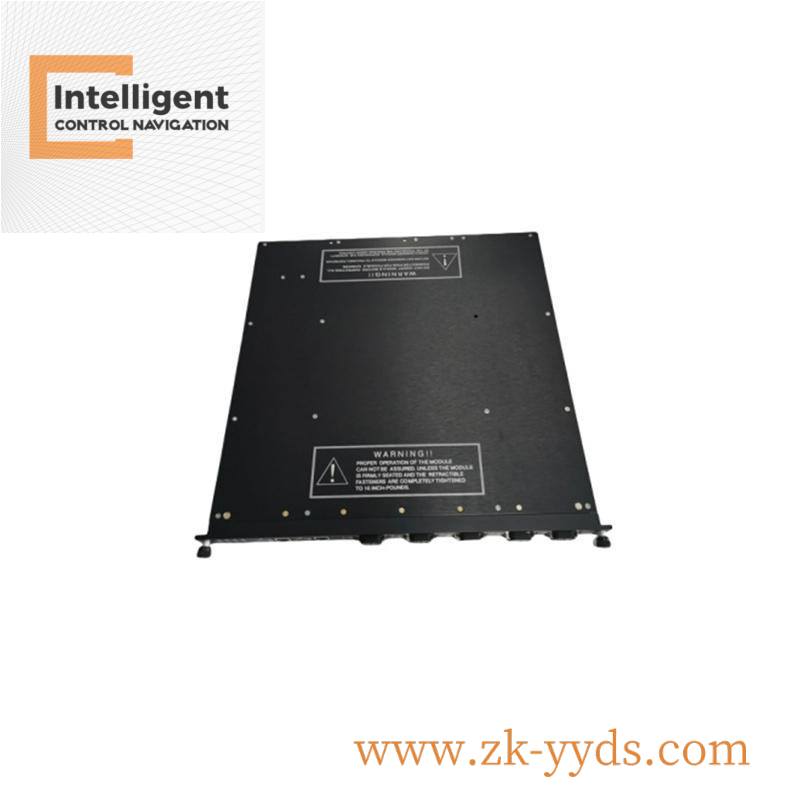

TRICONEX 3700A TMR AI Module
The TRICONEX 3700A TMR AI Analog Input Module is designed to provide triple modular redundancy (TMR) protection for critical applications in industrial automation systems. It features high accuracy and reliability, making it ideal for industries such as oil and gas, chemical plants, and power generation.
Model Type:Analog I/O Module
Model Number:Triconex 3700a
Manufacturer:Triconex
Voltage:0-5V, + 6%
Type:TMR, AI
No. of Input Points:32, diff, DC coupled
Isolated Points:No
Input Update Rate:55 ms
Resolution:12 bits
Accuracy:< 0.15% of FSR, from 0° to 60°C
Input Resistance (load):30 MΩ (DC), min.
Power-Off Resistance:30 KΩ (DC), typical
Common Mode Rejection:-80 dB (DC-100Hz), typical
Common Mode Range:-12V to +12V peak
Leg-to-Leg Isolation:200 KΩ, typical
Normal Mode Rejection @ 8Hz:-3 dB
Normal Mode Rejection @ 60Hz:-17 dB
Normal Mode Rejection @ 120Hz:-23 dB
The Triconex 3700A TMR Analog I/O Module is engineered to deliver unparalleled reliability and precision in the most demanding industrial environments.
Its triple modular redundancy design ensures fault tolerance, making it ideal for safety-critical applications.
With a voltage range of 0-5V and an accuracy of less than 0.
15% of Full Scale Reading, this module guarantees highly accurate data acquisition and control.
Designed for 32 differential input points, the module supports direct current coupling, enhancing its versatility across various industrial processes.
The high common mode rejection ratio ensures stable performance even in noisy environments, contributing to the longevity and reliability of the system.
