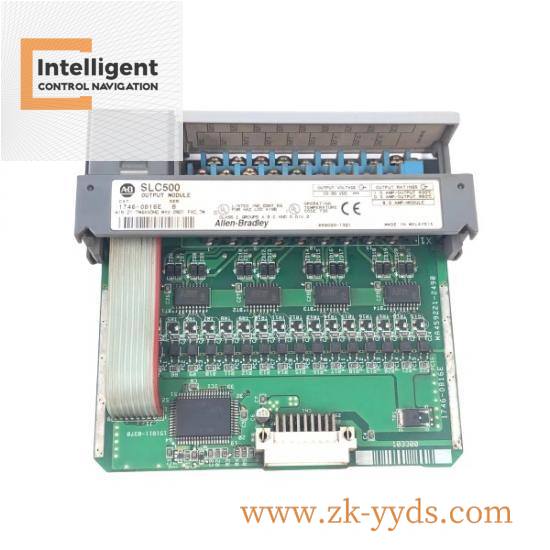

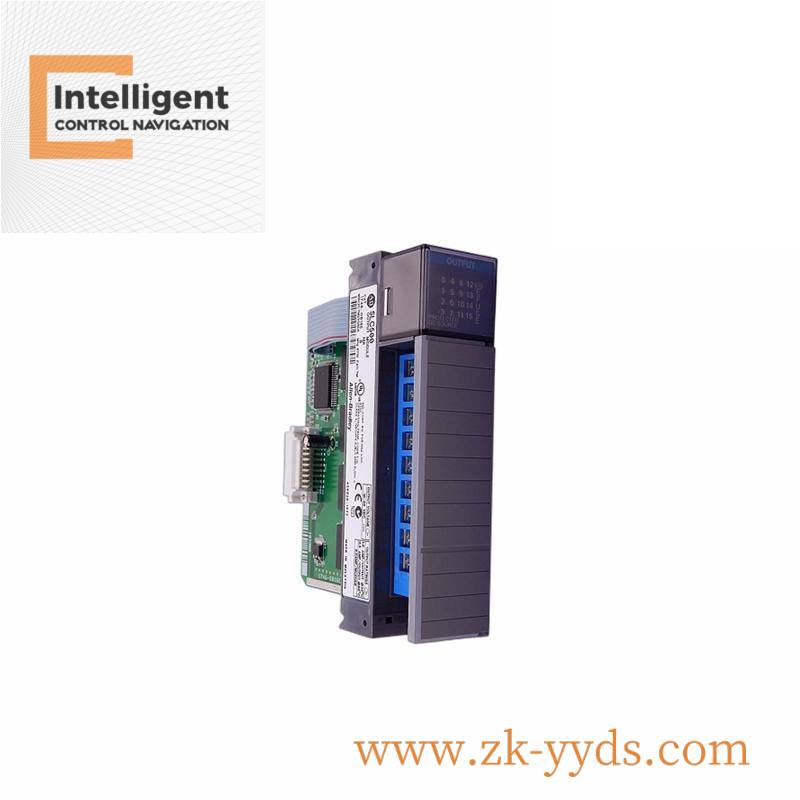

Allen-Bradley 1746-OB16E Digital Output Module
The Allen-Bradley 1746-OB16E Digital Output Module is a reliable solution for digital signal transmission in industrial automation systems. It provides 16 channels of digital output with a wide voltage range, making it ideal for various industrial applications.
Manufacturer:Allen Bradley
Model Number:1746-OB16E
Module Type:Digital Output Module
Number Of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Backplane Current Rating:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”}
Processor Compatibility:SLC 500
Environmental Conditions:0 – 60°C, 5 – 95% humidity
The Allen-Bradley 1746-OB16E Digital DC Output Module is meticulously engineered for robust performance in industrial environments. With its compact design, this module offers an impressive 16-channel capability, providing versatile solutions for automation and control needs. Each channel can handle up to 0.25 A at 60°C, with a total continuous current rating of 4 A per module at the same temperature, making it suitable for demanding industrial applications. The module operates at an input voltage of 24 VDC and outputs within a range of 10 to 50 VDC, ensuring compatibility with a wide array of devices and systems. Built with durability in mind, the module features a 1.2 V drop under on-state conditions and minimal off-state leakage, contributing to its reliability and efficiency. Moreover, the module boasts isolation ratings of 500 VDC for communication circuits and 1500 VAC for the backplane, safeguarding against electrical disturbances. Its open-type enclosure and chassis mounting allow for easy integration into existing systems, enhancing operational flexibility. Ideal for manufacturing lines, process control systems, and other industrial settings, the Allen-Bradley 1746-OB16E ensures seamless integration and enhanced system functionality.
